BDM adaptéry 22ks
BDM adaptéry 22ks
BDM pružné sondy 60mm
set adaptérov pre stojanček
| Kód: | BDM22PCS |
| Dostupnosť: | skladom |
BDM adaptéry 22ks

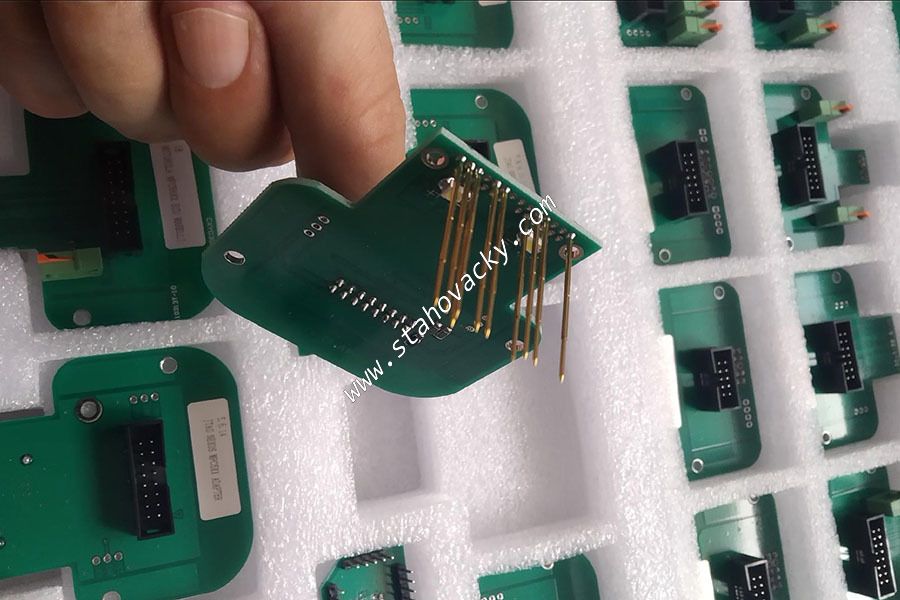

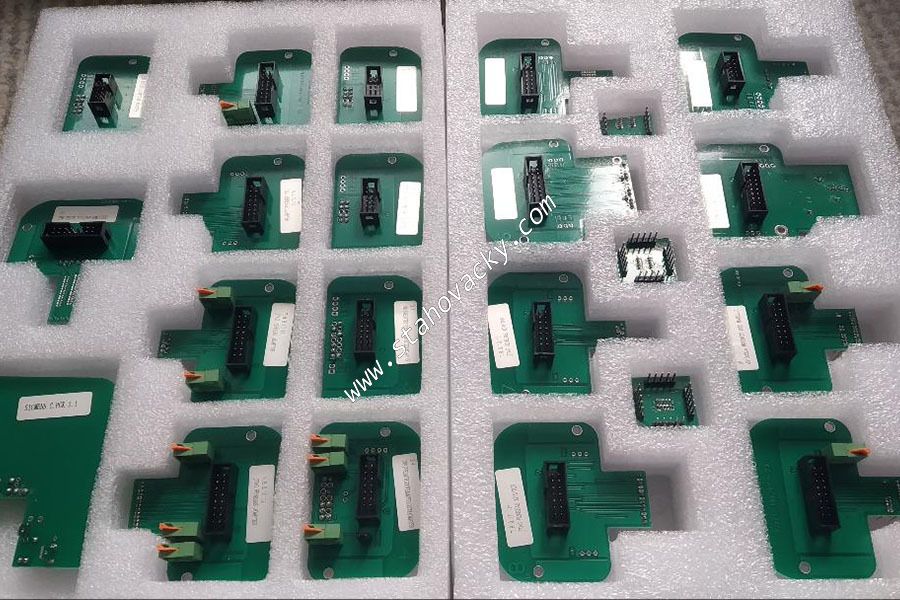

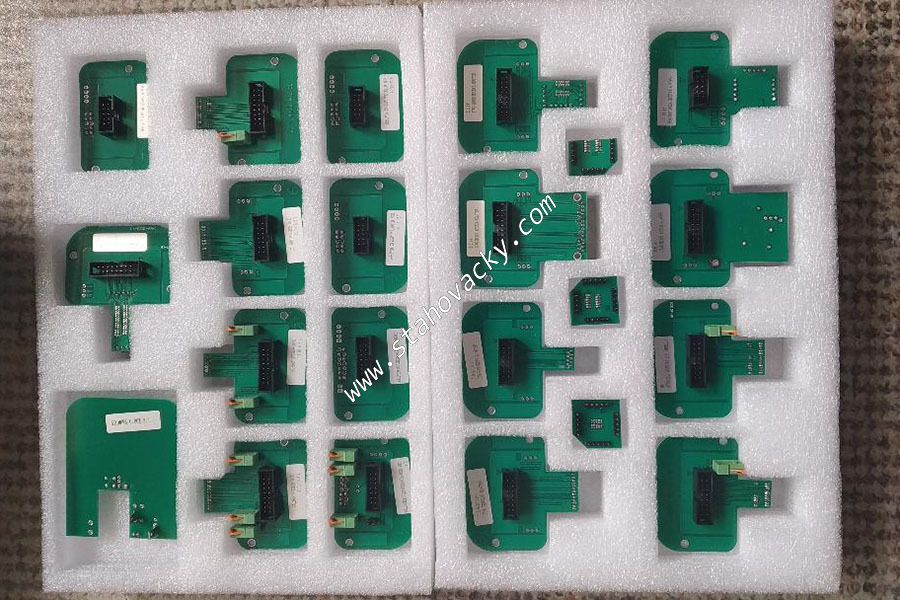

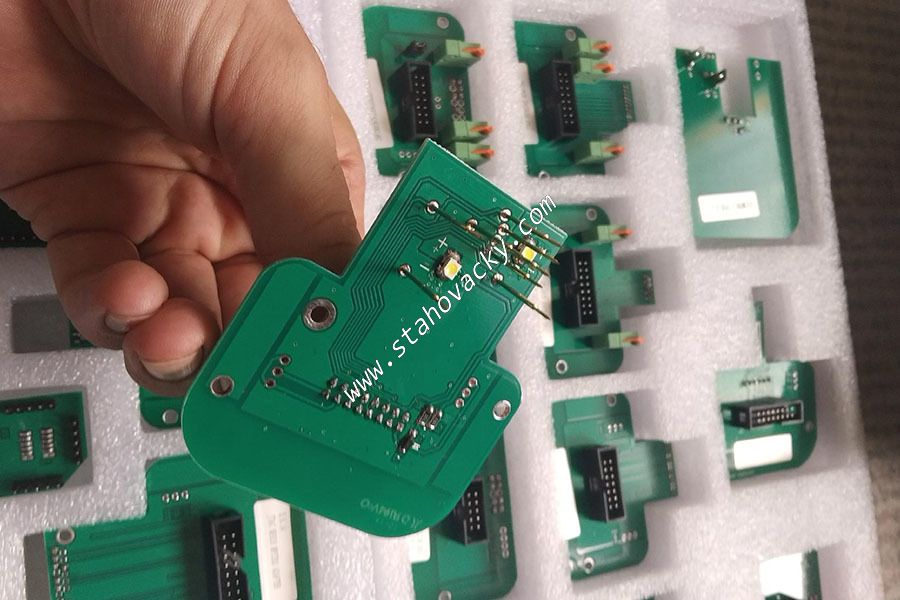

set multiplex adaptérov cez pružné piny pre uľahčenie čítania a zápisu riadiacich jednotiek (na stole pomocou cez BDM, on the bench, on the table with BDM frame) pomocou rôznych zariadení ako BMD100, KESS, KTAG, Fgtech V54, XPROG, Dimsport, Trasdata apod... šírka cca 60mm, celkove v baleni 19+3 adaptérov. Určené pre BMD stolíky, moznosti rôzneho zapojenia, vrátane osvetľovacích LED diód
|
Adapter no. |
K-TAG p/n. + description |
|
1 |
14AM00T01M Bosch |
|
2 |
14AM00T02M Delphi DCM |
|
3 |
14AM00T03M Bootloader ST10xx |
|
4 |
14P600KT04 Infineon Tricore EDC/MED17 |
|
5 |
14AM00T05M Marelli MPC55xx JTAG |
|
6 |
14AM00T06M Delphi MPC55xx JTAG |
|
7 |
14AM00T07M Denso CN1 Boot |
|
8 |
14AM00T08M Denso CN2 Boot |
|
9 |
14AM00T09M Denso CN3 Boot |
|
10 |
14AM00T10M Denso CN1 AUD |
|
11 |
14AM00T11M Denso CN2 AUD |
|
12 |
14AM00T00M Delphi DCI |
|
13 |
14AM00TBAS Base Adapter 1.27 |
|
14 |
14AM00T14M NexusEFI T6 Lotus |
|
15 |
14AM00TB02 Magneti Marelli BDM insert |
|
16 |
14AM00TB01 Siemens BDM insert |
|
17 |
14AM00TB03 EDC7 BDM insert |
|
18 |
14AM00T18M Magneti Marelli MPC/SPC56xx |
|
19 |
14AM00T13M Nexus MPC5xx TRW ECU |
|
|
VAG 1.6tdi - Siemens-Continental PCR2.1 |
|
|
14AM00T15M Toyota NEC76F-20 |
|
|
14AM00T16M Toyota NEC76F-26 |
|
Adapter no. |
Dimsport p/n. + description |
|
1 |
F34DM002 Bosch |
|
2 |
F34DM009 Delphi DCM |
|
3 |
F34DM010 Bootloader ST10xx |
|
4 |
F34DM011 Infineon Tricore EDC/MED17 |
|
5 |
F34DM012 Marelli MPC55xx JTAG |
|
6 |
F34DM013 Delphi MPC55xx JTAG |
|
7 |
F34DM015 Denso CN1 Boot |
|
8 |
F340M017 Denso CN2 Boot |
|
9 |
F340M019 Denso CN3 Boot |
|
10 |
F34DM014 Denso CN1 AUD |
|
11 |
F340M016 Denso CN2 AUD |
|
12 |
F34DM001 Delphi DCI |
|
13 |
F34DM003 Base Adapter 1.27 |
|
15 |
F34DM005 Magneti Marelli BDM insert |
|
16 |
F34DM004 Siemens BDM insert |
|
17 |
F34DM008 EDC7 BDM insert |
|
18 |
F34DM025 Magneti Marelli MPC/SPC56xx |
|
19 |
F34DM021 Nexus MPC5xx TRW ECU |
|
|
VAG 1.6tdi - Siemens-Continental PCR2.1 |
|
|
F34DM023 Toyota NEC76F-20 |
|
|
F34DM024 Toyota NEC76F-26 |
